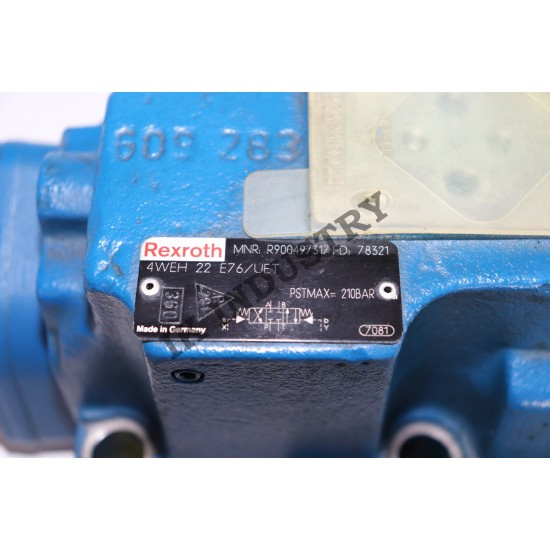

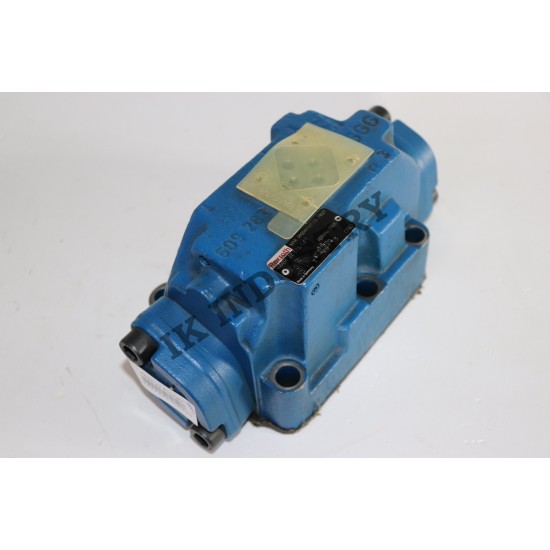

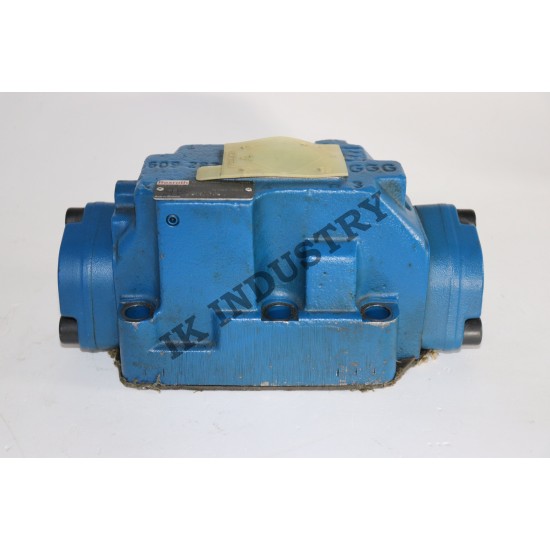

REXROTH 4WEH 22 E76/UET Electrohydraulic

4WEH 22 E76/UET-REXROTH

Electrohydraulic

2 types of actuation: Electrohydraulic (type WEH) Hydraulic (type WH)For subplate mounting Porting pattern to ISO 4401 and NFPA T3.5.1 R2 For subplates to data sheets RE 45054 to RE 45060 (separate order),

see page 32 Spring- or pressure-centering, spring end position or hydraulic end position Wet-pin DC or AC voltage solenoids, optional

Manual override, optional Electrical connection as individual or central connection, see RE 23178 and RE 08010 Switching time adjustment, optional Pre-load valve in channel P of main valve, optional

Stroke adjustment of main spool, optional Stroke adjustment and/or end position control, optional Inductive position switches and proximity sensors (contactless), see RE 24830
