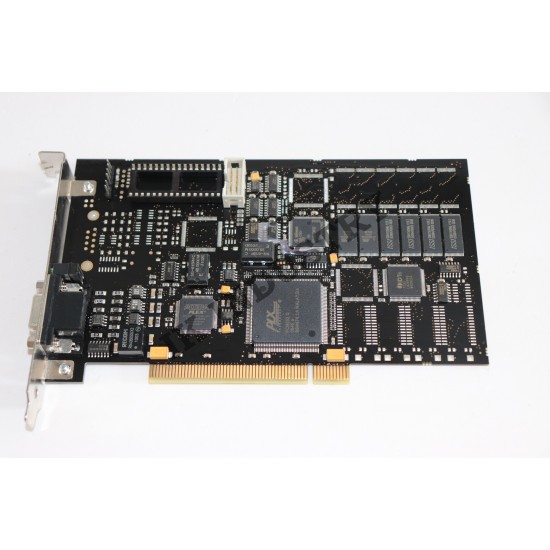

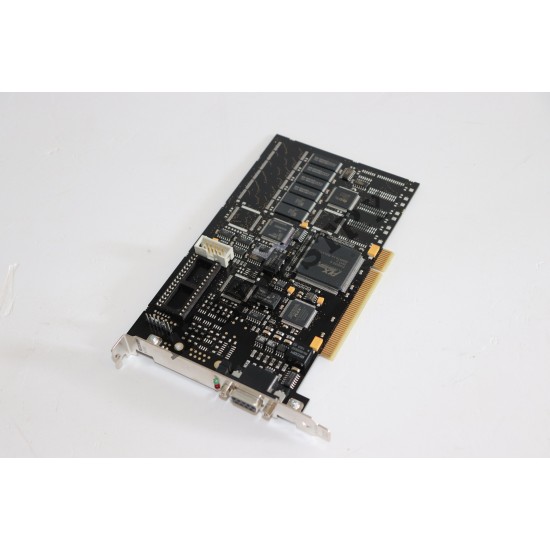

BECKHOFF FC3101-0000 fieldbus card

FC3101-0000-Beckhoff fieldbus card

BECKHOFF FC3101 PROFIBUS

fieldbus card behaves in logical terms in the same way as  two FC3102 cards, i.e. all components (with the exception of the PCI interface  and the optional NOV RAM) are present in duplicate on the FC3102 card.

Each channel of the FC310x card consists of the following components: 80165 25 MHz micro-controller 512 k RAM 256 k Flash 4 k DP-RAM

Fieldbus interface (Altera 6016 with 48 MHz, RS485 bus interfacing, 9 pole SUB D plug) 2 LEDs (1 x green, 1 x red) 1 four pin and 1 two pin plug for the bootstrap loading mode

The following components are present in single form only: PCI interface (PLX9050: 1 interrupt input per channel, 1 interrupt output and 1 chip select signal for DP-RAM and 1 reset line for both channels) optional 32 k plug-in NOV RAM, addressed via an additional chip-select line

Our sales are postpaid and guaranteed.
We provide on-site repair and technical service.
