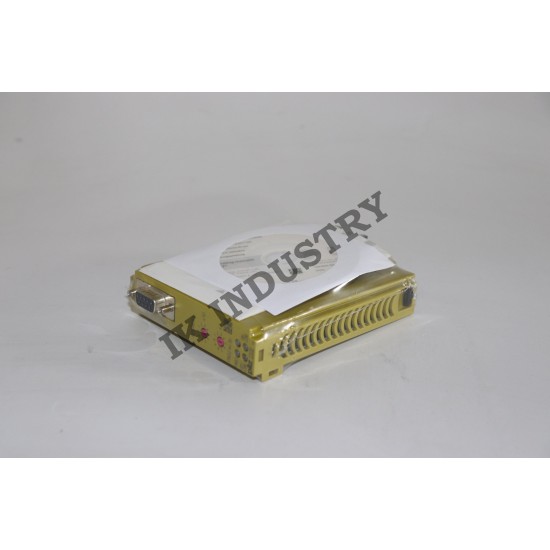

Pilz PNOZ mc3p 773732 Profibus-DP

Pilz PNOZ mc 3p 773732

Profibus-DP

Using the product PNOZ mc3p: Verwendung/Bildunterschrift_multi_Modul Expansion module for connection to a base unit from the configurable control system PNOZmulti Geraetemerkmale_Zusatz BA Einleitung

The product has the following features: Gertemerkmale_Feldbus_PROFIBUS-DP Can be configured in the PNOZmulti Configurator Connection for PROFIBUS-DP Station addresses from 0 ... 99, selected via rotary switch

Status indicators for communication with PROFIBUS-DP and for errors Gertemerkmale_Feldbusmodule allg ? 24 virtual outputs on the control system PNOZmulti can be defined in the PNOZmulti

Configurator for communication with the fieldbus PROFIBUS DP. The number of inputs and outputs can be extended to 128.

Please note that when the extended inputs and outputs 24 - 127 are used they have different properties (see document entitled "Communication Interfaces").

Max. 1 PNOZ mc3p can be connected to the base unit Gerätemerkmal_multi_Modul_Anschluss_Basis ? Please refer to the document "PNOZmulti System Expansion" for the PNOZmulti base units that can be connected
